Cylinder Block - Replacing

NO.
943

Group
21

SECTION
2

DATE
March 1997

RE:
Replacing cylinder block, B6304

960; 1992-1994

REFERENCE:
TP 2103201, SECTION 2(21) RECONDITIONING ENGINES B6244, B6254, B6304; 960 1991-

Replacing cylinder block, B6304

Background:
There is now a cylinder block kit as a replacement part for defective/damaged cylinder blocks. Instead of replacing the complete engine, use a materials kit that includes cylinder block, pistons, wrist pins and piston rings.

The cylinder block included in this kit is the latest version, which means that certain components on the existing engine cannot be used.

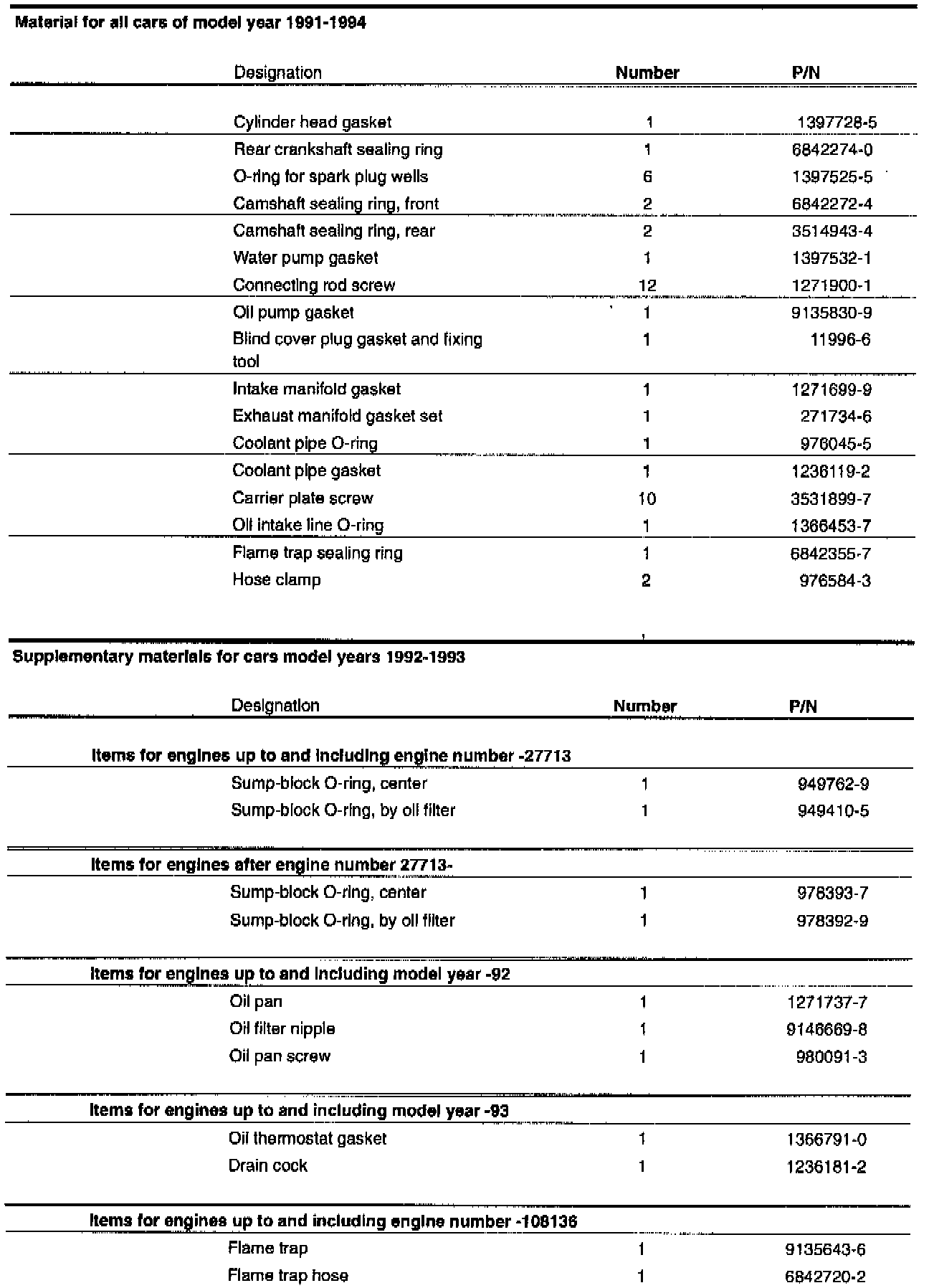

Other material needed for the repair: see table.

Method: See standard Service Manual.

WARRANTY STATEMENT: Claims may be submitted under the New Car Limited Warranty when a manufacturing defect is present using claim type: 01

Operation No. Labor description Time allowance

21238-2 Cylinder block, replace 20.4 hr
