Fuel System - Service Manual and Component Update
SECTION3
GROUP
38
NO.
810X
DATE
January 1995
Additions to Service Manuals 800
REFERENCE: TP 3501201, SECTION 3 (35-38), LIGHTING, INSTRUMENTS AND OTHER ELECTRICAL COMPONENTS 850 1992-
ADDITIONS TO SERVICE MANUALS
When working on or replacing the fuel level sender or the fuel pump use caution to ensure components are not damaged.

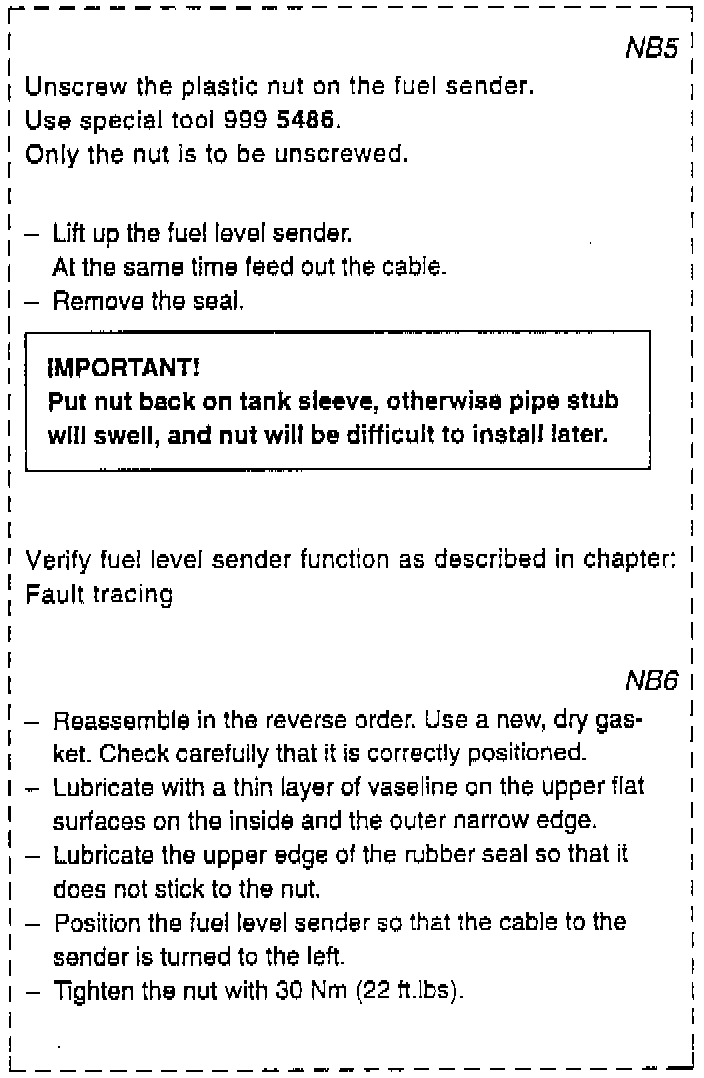

The Service Manual TP 3501201 Section 3 (35-38), Lighting, Instruments and other electrical components 850 1992- must be updated with the attached sticker.
The part number for the fuel pump gasket is incorrect and must be changed in the three manuals for the engine management system, Section 2 (23, 28). With a pen, cross out the reference P/N 3531426-9 and write instead P/N 3501323-4. The following pages in these manuals require correction:
TP 32379/2, LH3.2 and EZ 129K, page 270, operation UD6.
TP 2304031, Fenix 5.2, page 248, operation TD6. (Canada only)
TP 2301202, Motronic 4.3, page 428, operation TD6.
After sticking in the label and changing the part number references please discard this Service Bulletin.
TP 3501201
Page 223
Immediately after Paragraph NB4.
