Lubrication Points

Lubrication Points

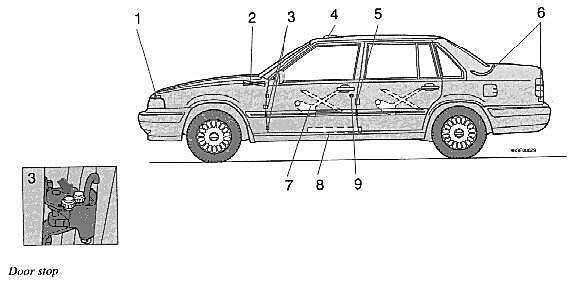

Lubrication Hint Lubrication

1. Hood lock and latch Oil
2. Hood hinges Oil
3. Door stop and hinges Oil
4. Sun roof wind deflector and mechanism Oil
5. Door lock catch plate Oil
6. Trunk lid lock. keyhole and hinges Low temperature grease
7. Window regulator Oil, Grease
Locking device (inside of door) Low temperature grease
8. Front seat slide rail and latch Oil
9. Door lock keyhole Low Temperature grease or Volvo Teflon lock spray


To avoid rattles and unnecessary wear the body should be lubricated at regular service intervals. This should be done by an authorized Volvo retailer
