Late

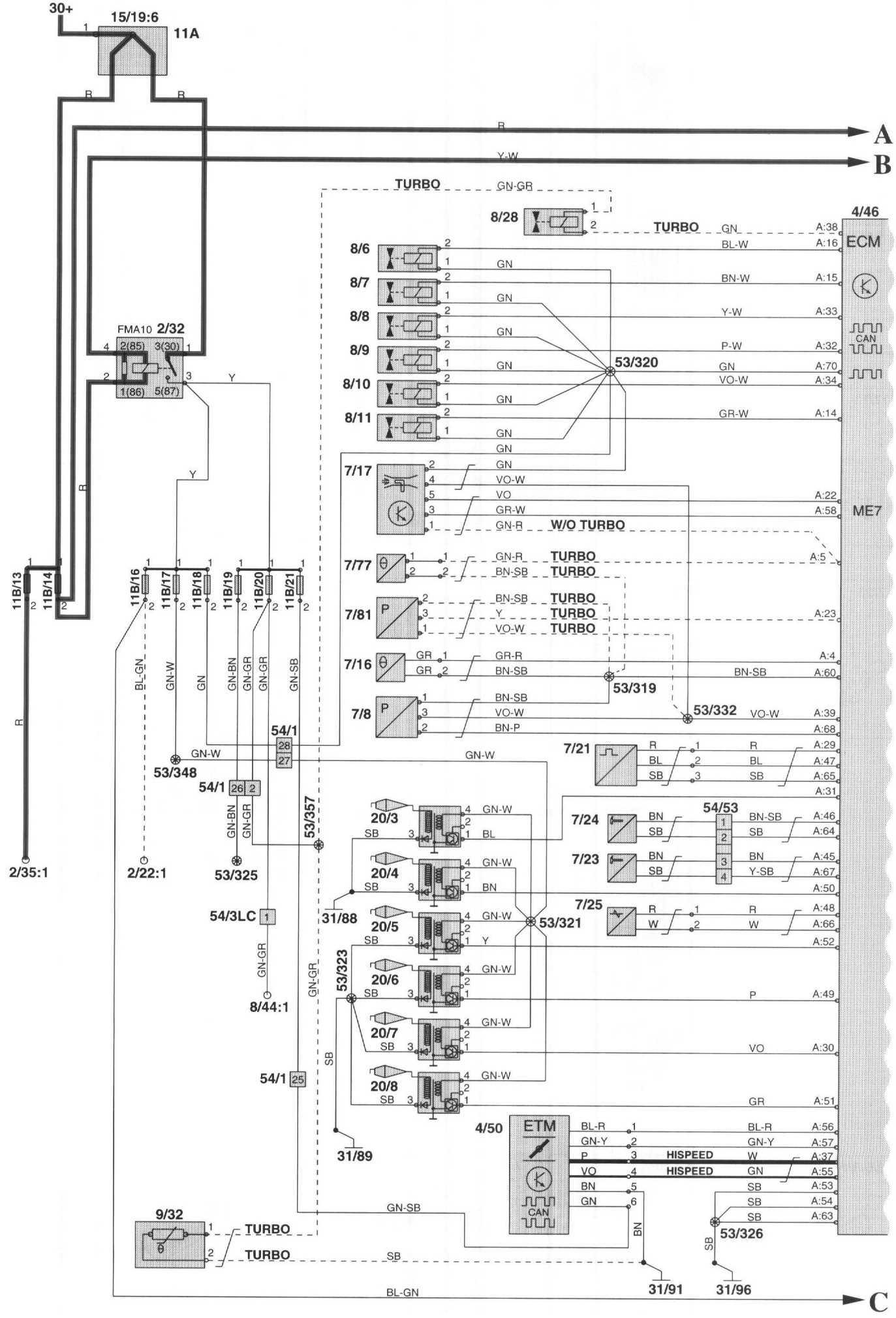

Engine Management System ME7 - Wiring Diagram:

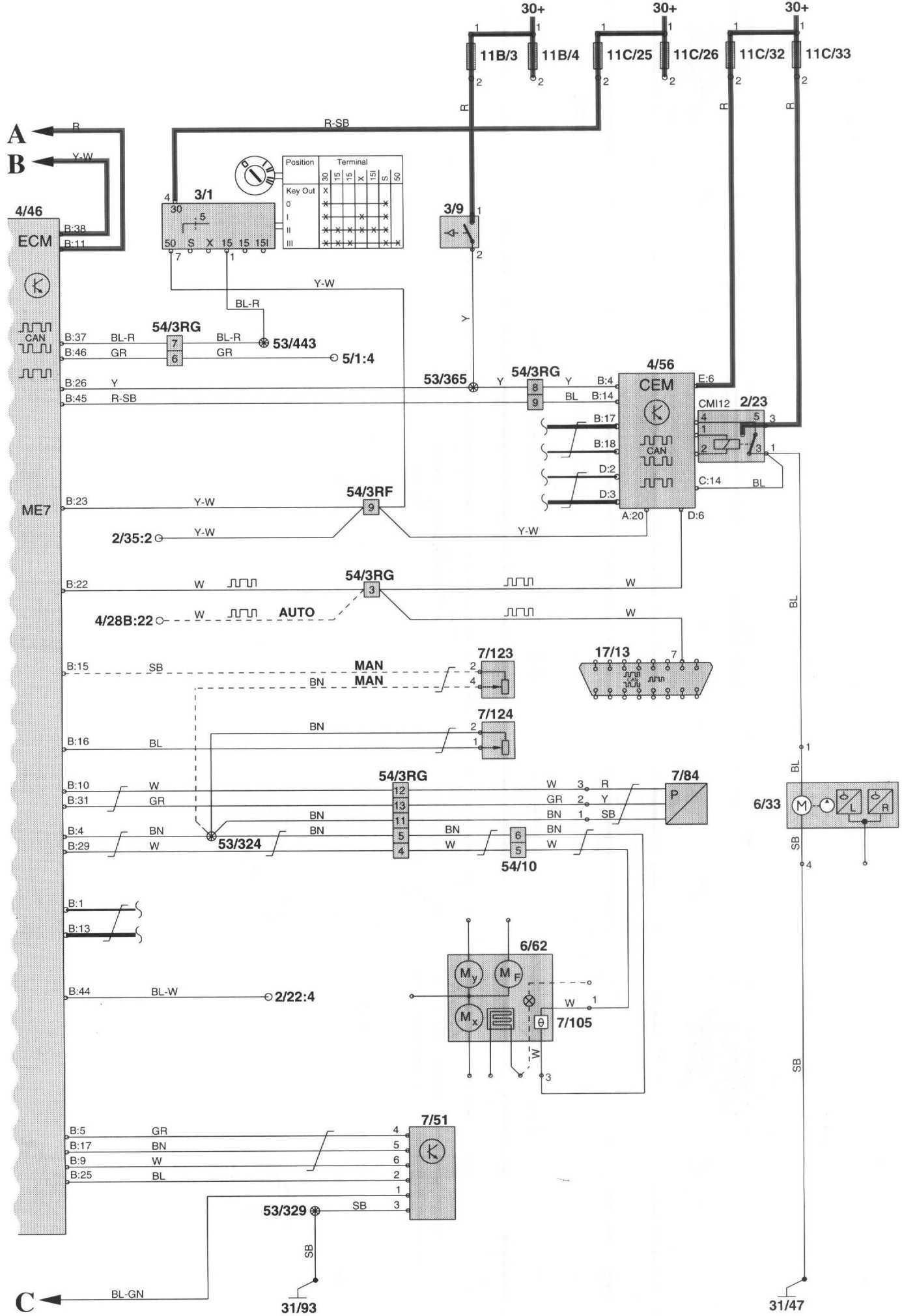

Engine Management System ME7 - Wiring Diagram:

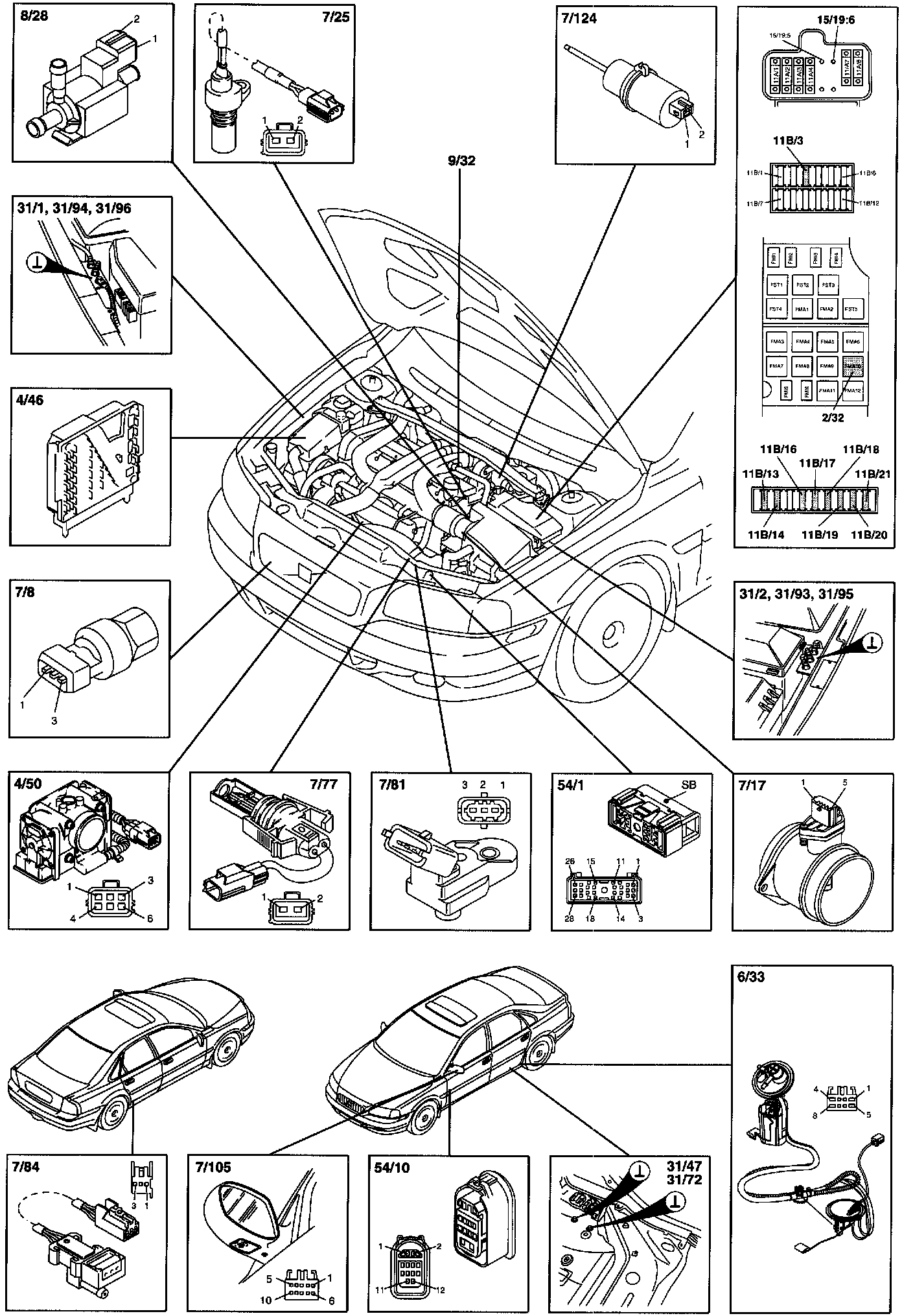

Engine Management System ME7 - Component Location:

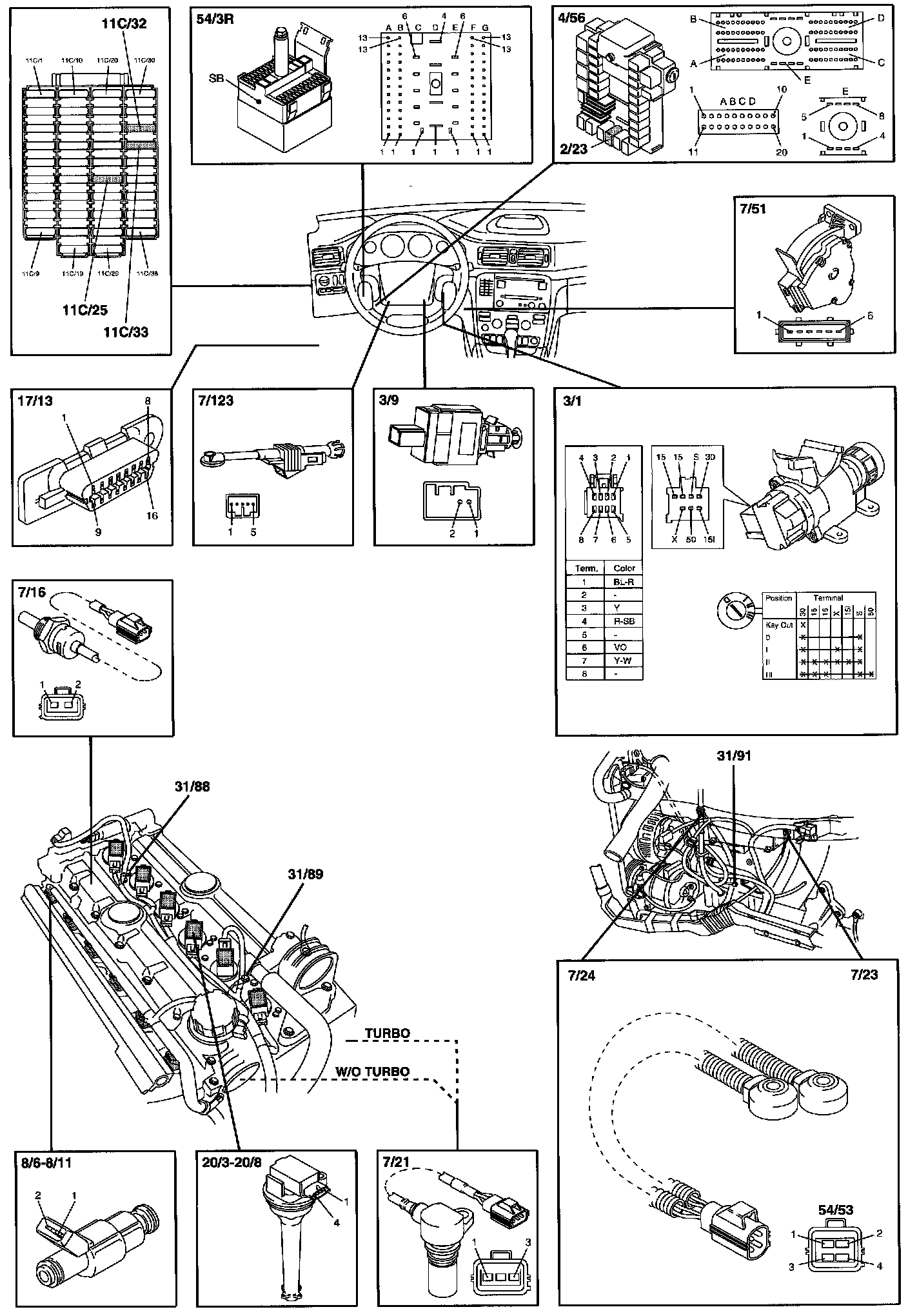

Engine Management System ME7 - Component Location:
