Blower Fan Power Unit

Preparations

Remove:
- the battery lead
- Passenger side soundproofing.

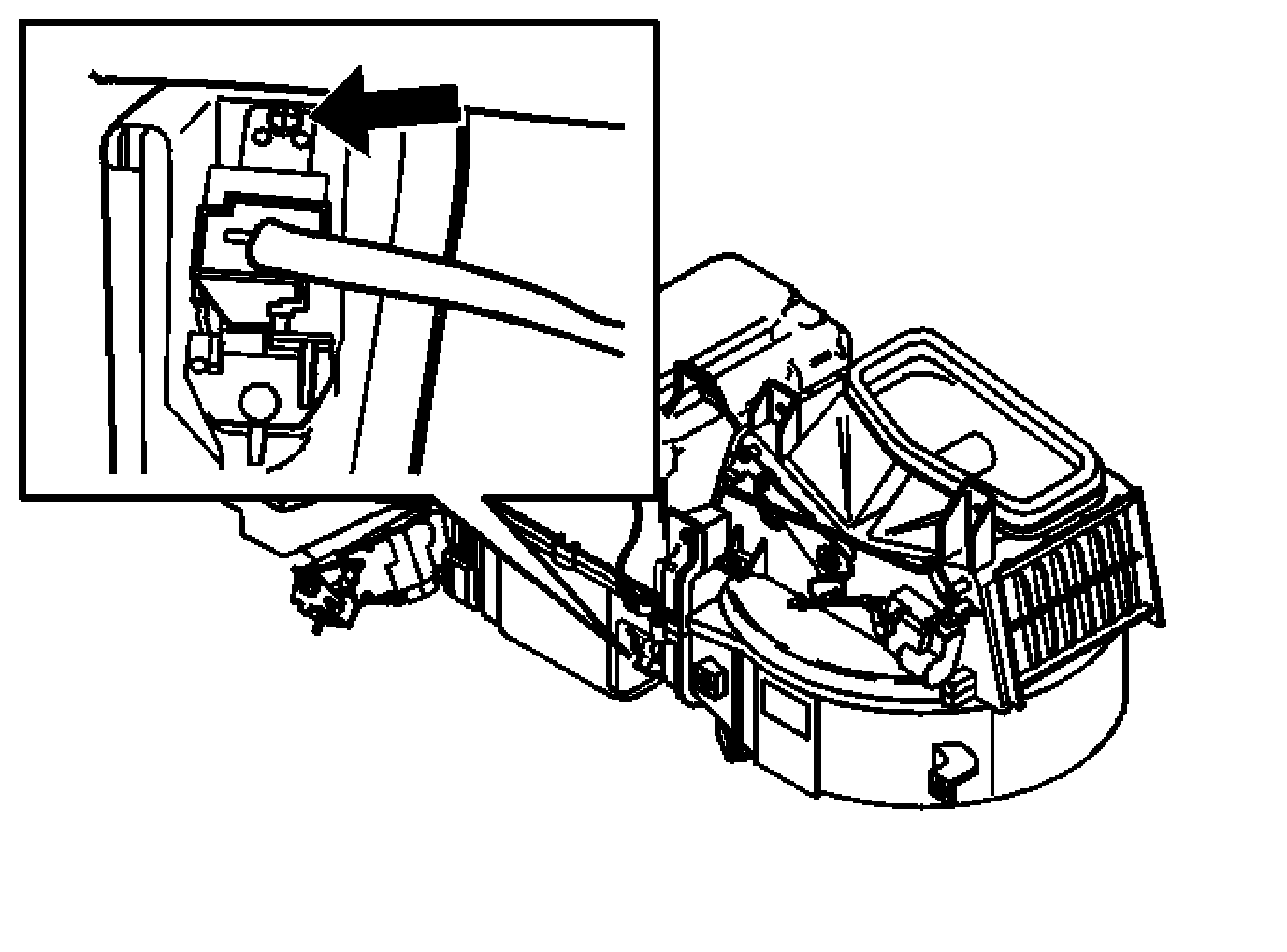

Removing The Blower Fan Power Unit







Remove:
- the connector
- the screws and remove the power unit.

Installing The Blower Fan Power Unit

Install:
- a new power unit
- the connector
- Passenger side soundproofing
- the battery lead.
