Engine Management System

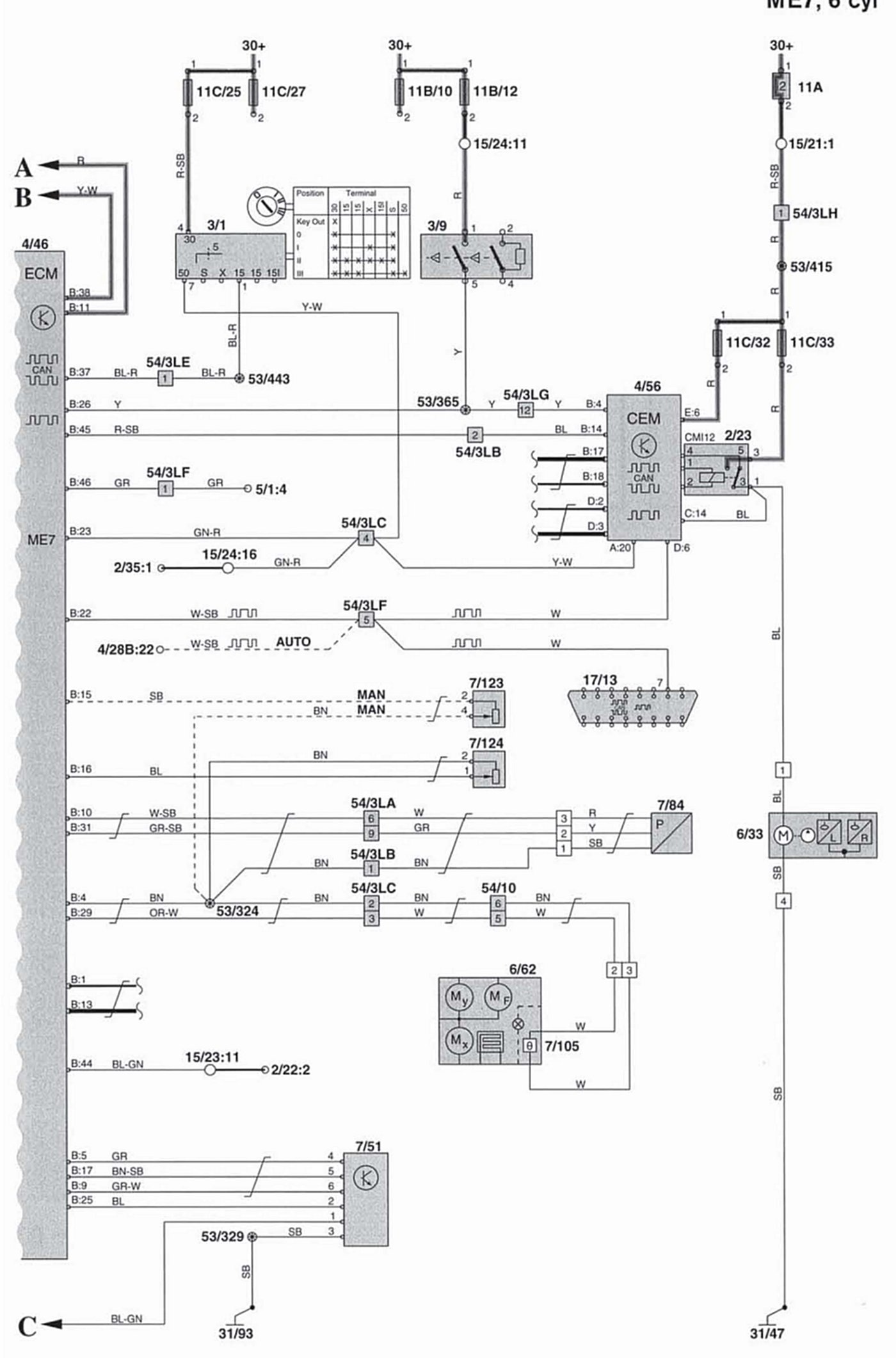

Engine Control Module (ECM), 2001 S80 ME7/T6

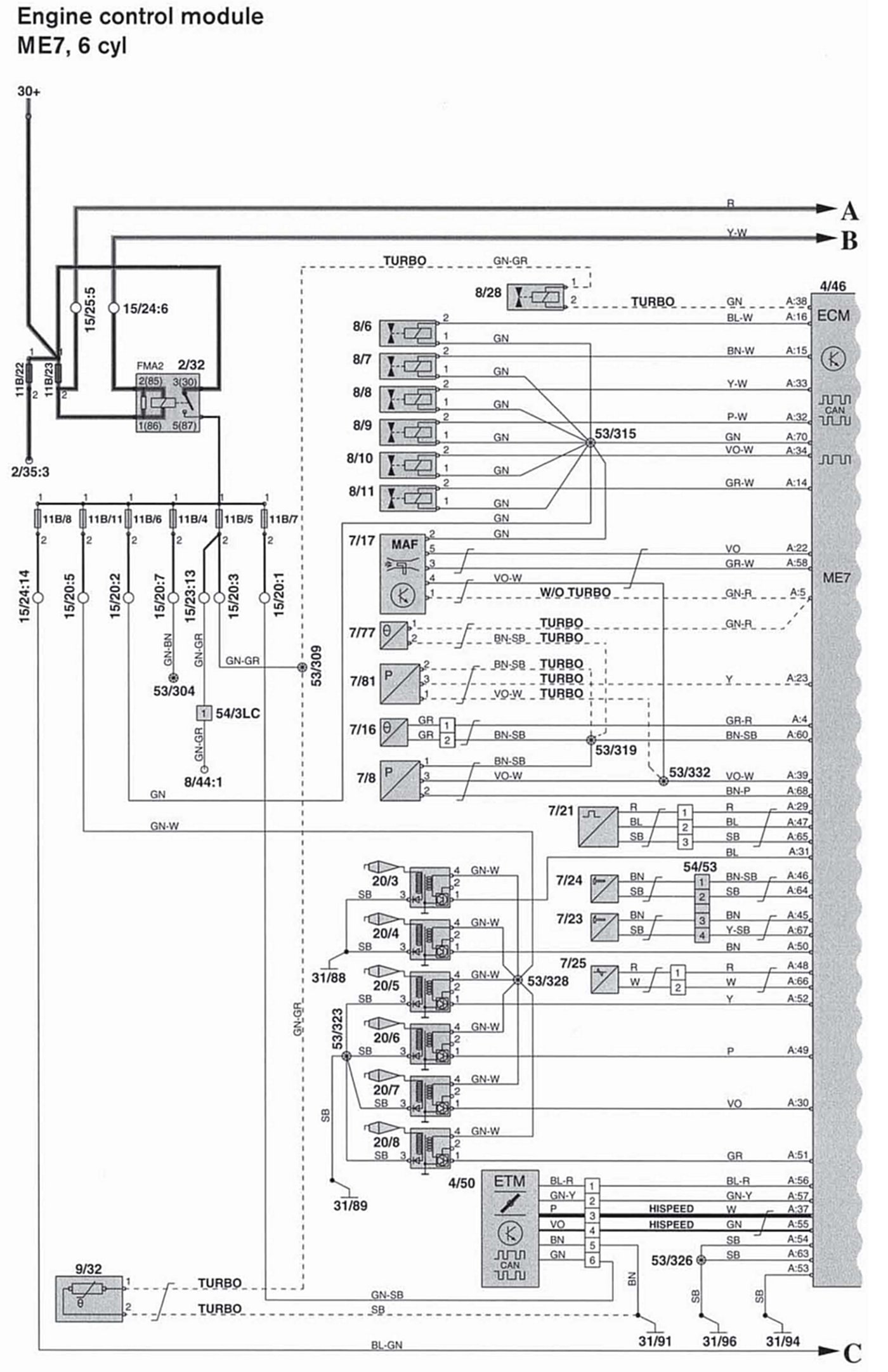

Electrical diagrams, ECM, part 1 & 2:

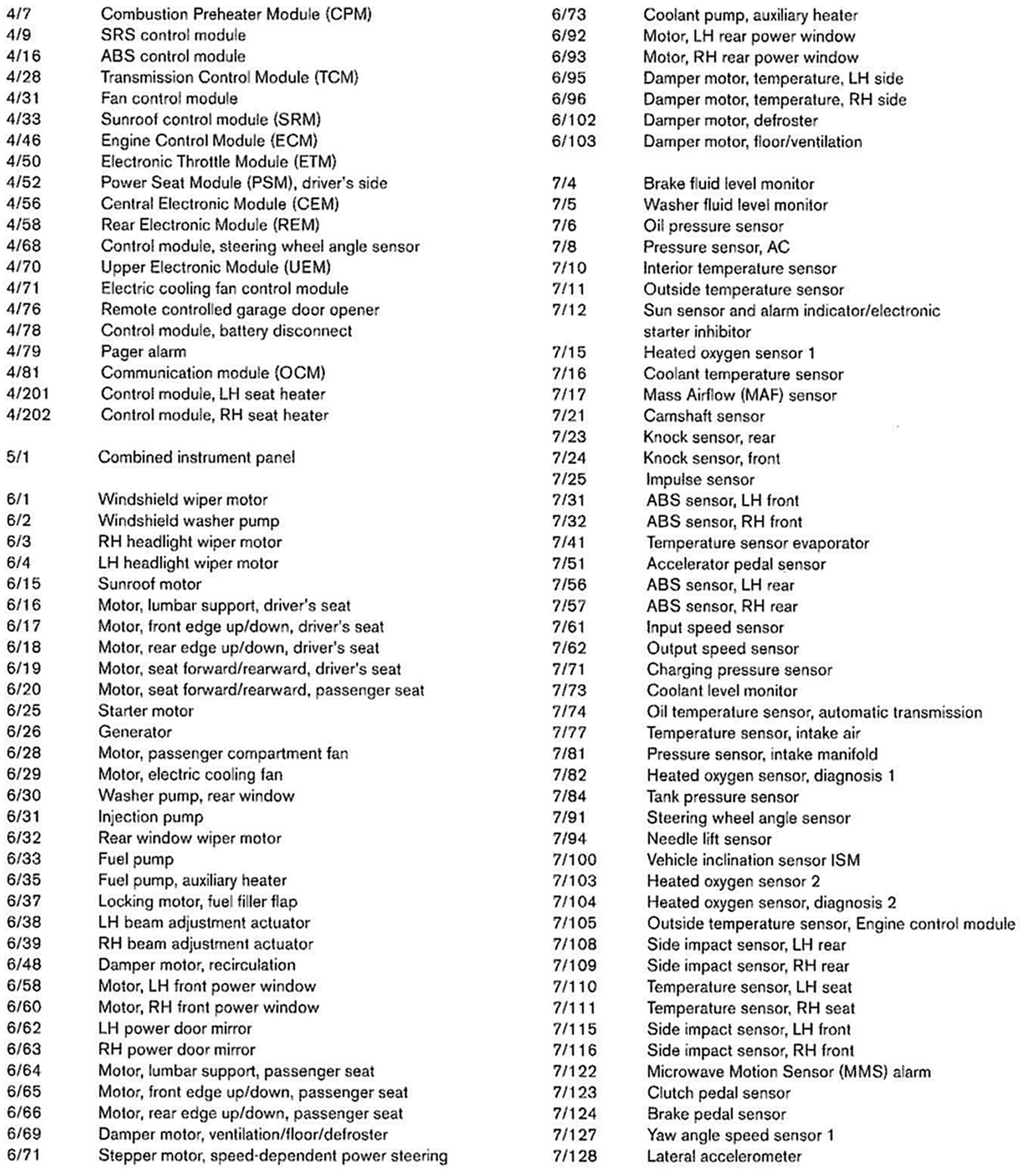

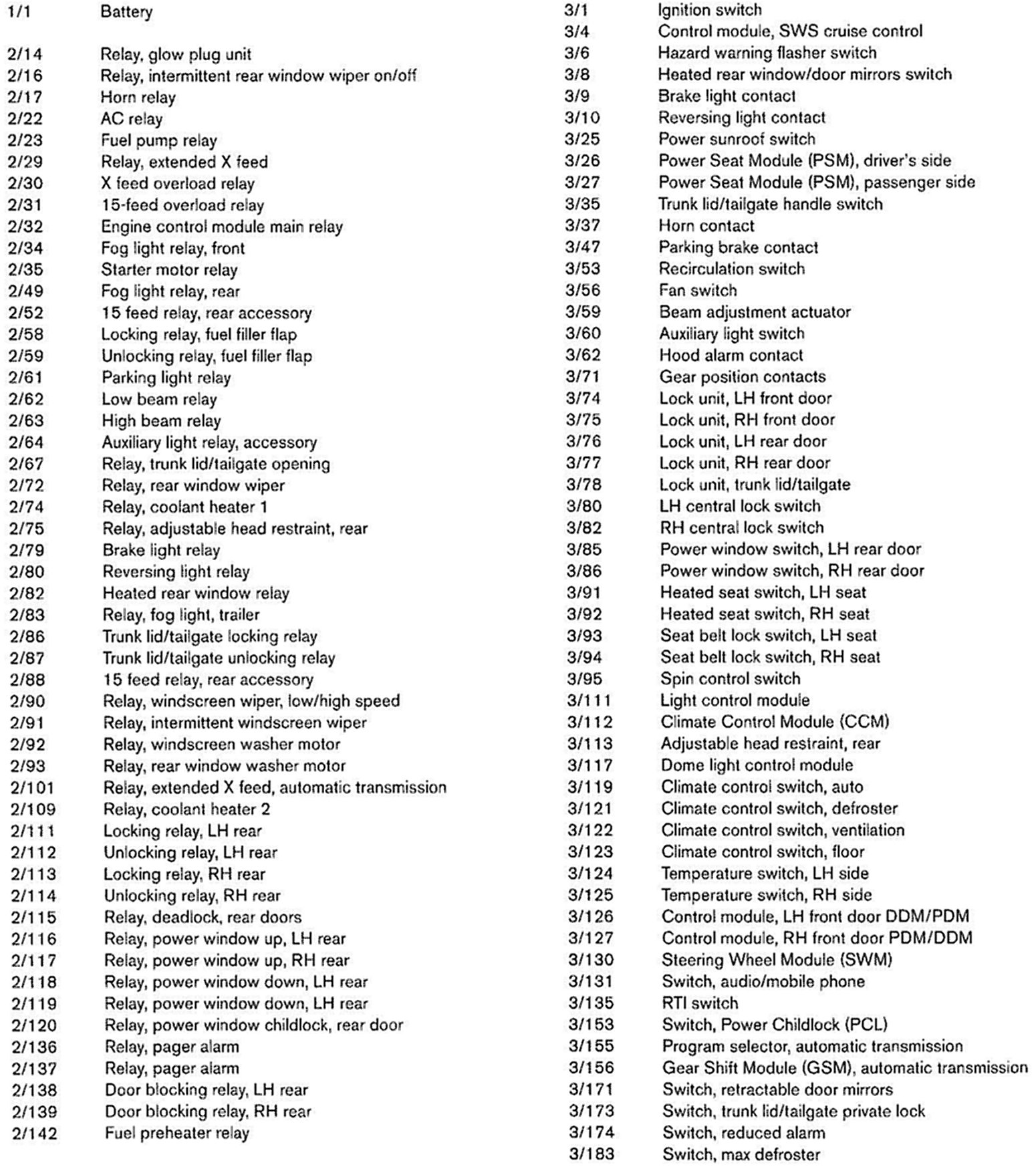

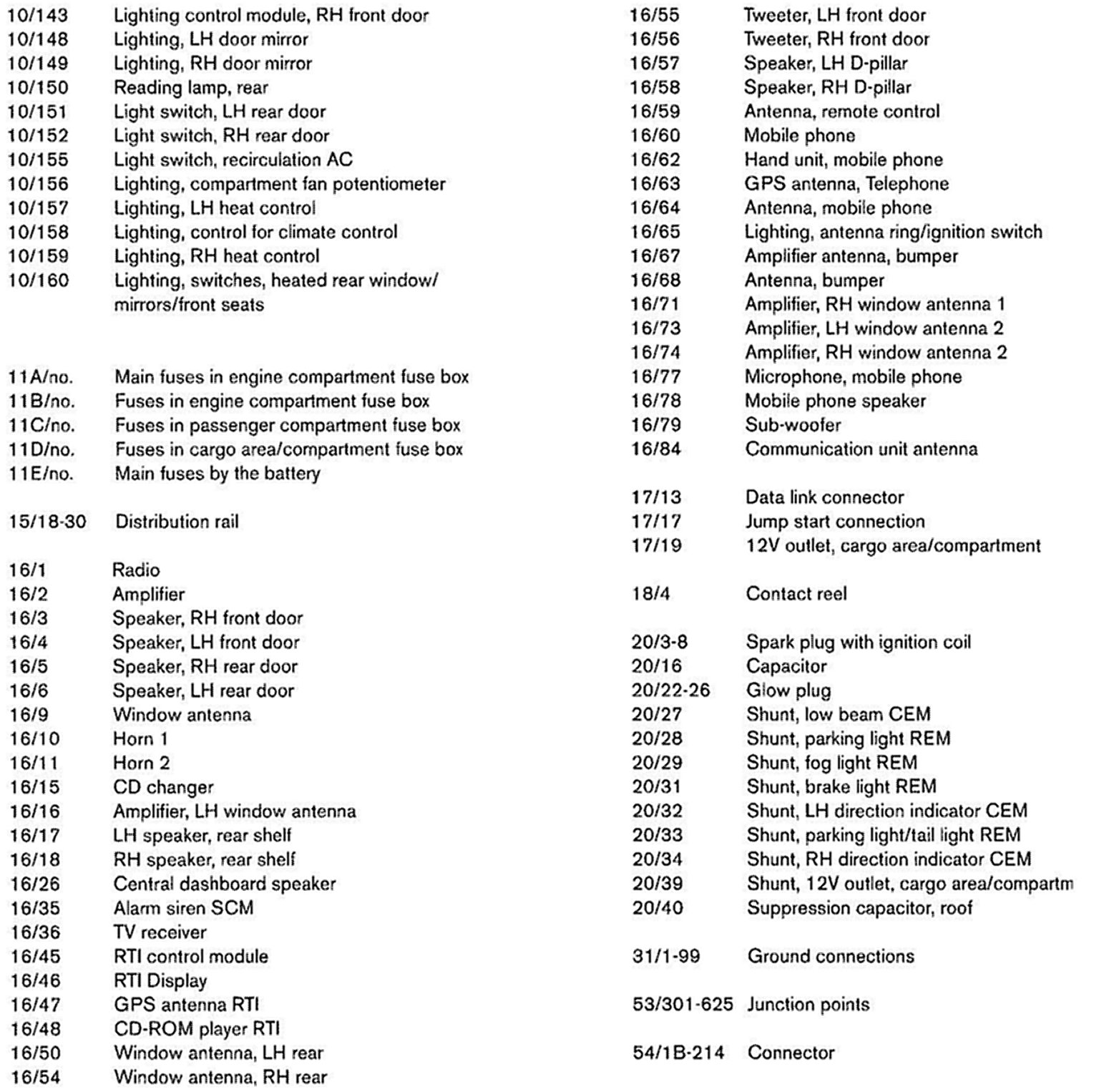

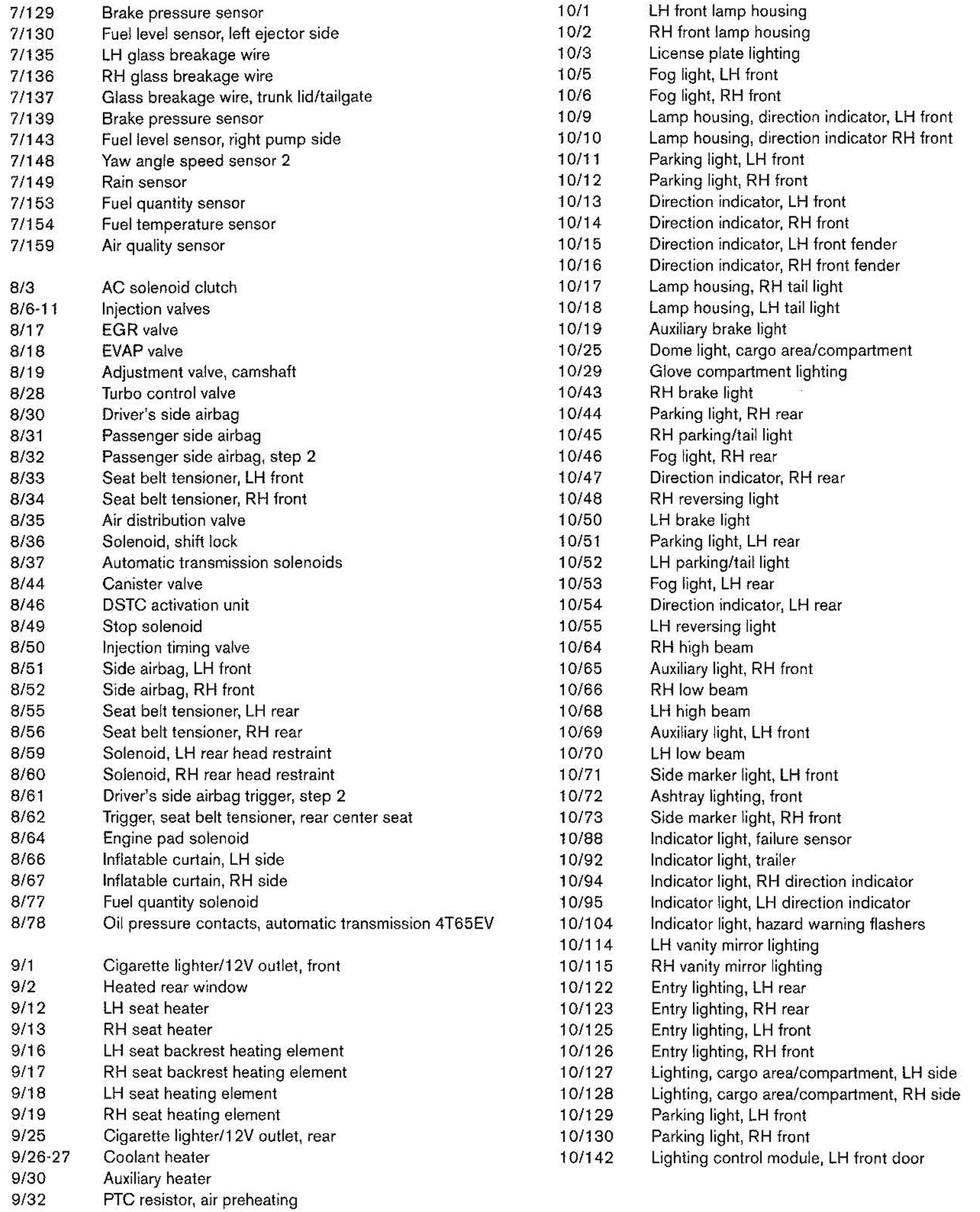

Electrical components, all, by Type number/Component number:
