Replacing The Lower Radiator Member

Replacing the lower radiator member

The extent of the damage may vary and with it the number of components that need to be removed.
See Front section .

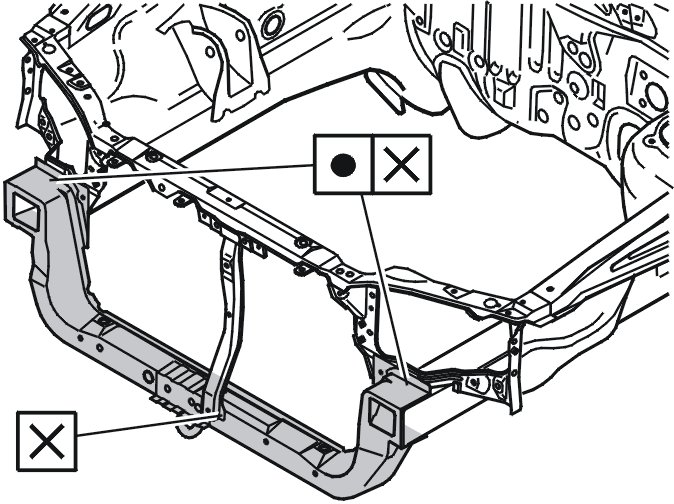

Removing the lower radiator member




Drill or grind out the spot welds.
Pry off the member.
Grind clean.
Check that the dimensions of the car are correct. See Bodywork dimensions .

Installing the lower radiator member
Grind the welding surfaces clean.
Apply welding primer.
Adjust the member.
Check the A and B dimensions. See Bodywork dimensions .
Secure the member.
Weld into place.

Hint: Use the painted edges from the removed member as an aide when aligning.
