Replacing The Upper Radiator Member

Replacing the upper radiator member

The extent of the damage may vary and with it the number of components that need to be removed.
See Front section .

Removing the upper radiator member




Drill or grind out the spot welds.
Pry off the component.
Grind clean.

Installing the upper radiator member
Apply welding primer.

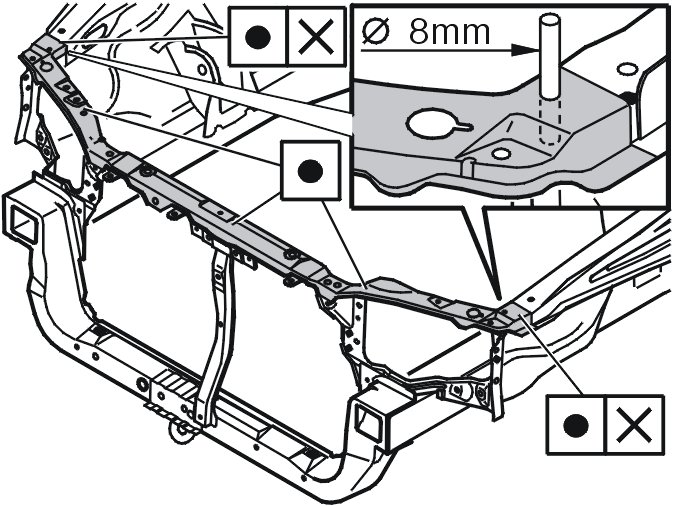

Adjust using an eight mm drift through both panels.
Check the A dimensions. See Bodywork dimensions .
Secure the member.
Weld into place.

Hint: Use the painted edges from the removed member as an aide when aligning.
