Home >> Volvo >> 2003 >> S40 L4-1.9L Turbo VIN 27 B4204T4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/11 Connector

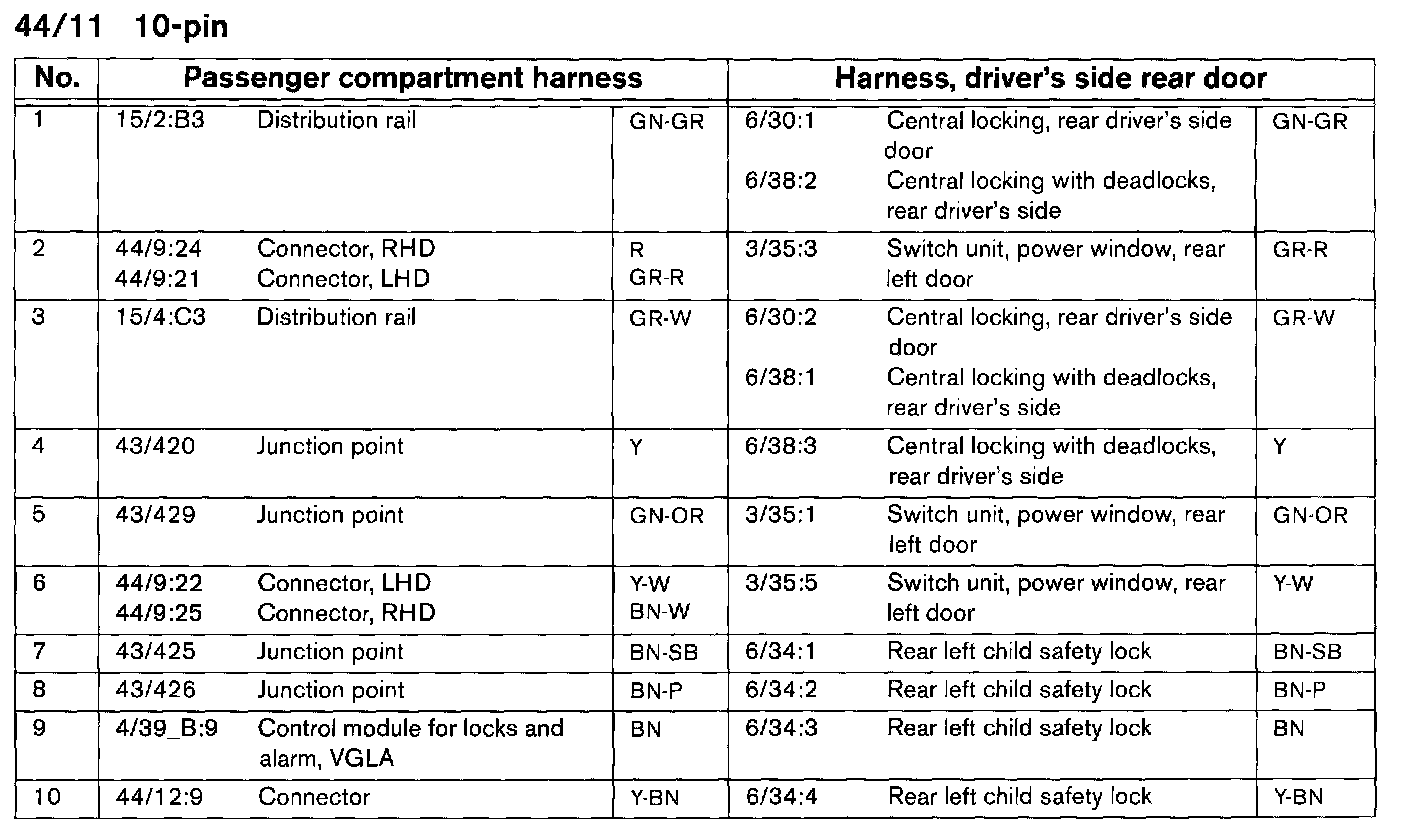

44/11 Connector

44/11:



44/11-12 Connector:
