Map Light: Service and Repair

Interior Lighting, Replacing

Removal And Installation

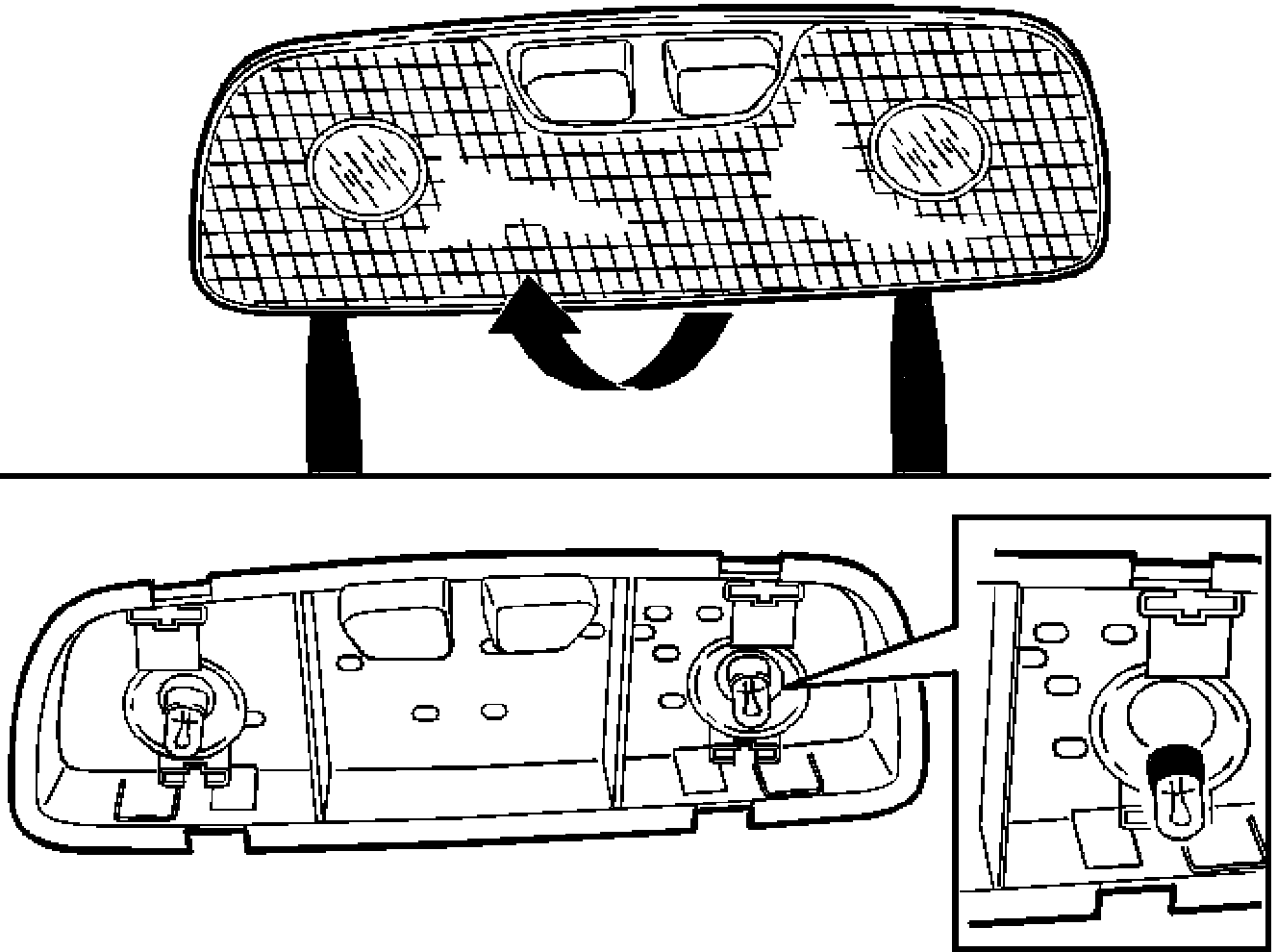

Reading Lamp (front)







Remove:
- the lens by inserting a weatherstrip tool or similar under the edge and twisting
- the lens reflector by carefully inserting a weatherstrip tool at the catches and pulling off the reflector
- the bulb.

Installation
Reinstall in reverse order.

Removing The Handle (rear)







- Remove the covers.
- Remove the two screws and release the handle by pulling it straight out.

Removing Reading Lamps (rear)







- Release part of the weatherstrip from the rear door arch.
- Pull the headlining downwards. Press in the protruding edges (A) and remove the lamp from the headlining.
- Disconnect the connector.

Installing Reading Lamps (rear)







- Connect the connector. Install the lamps and the cover in the headlining.
- Check that the parts are correctly aligned with the protruding edges.
- Reinstall the headlining. Install the weatherstrip in the rear door arch.
- Check that the lamps function.

Installing The Handle (rear)







- Position the handle (check the pin) and screw in the screws.
- Install the covers.
- On the driver's side: make holes for the plugs.
