Recall - Fuel Rail Inspection/Repair/Replacement
S40(-04)/V402003-
Section
2
Group
23
No.
0063
Year
04
Month
01
Recall Campaign No.128 - Fuel Rail
Background
In some cases, the service nipple of the fuel rail, which distributes fuel into the engine, may come loose due to an improper weld. When this occurs, a fuel odor may be present and fuel leakage is possible. The corrective action will be to install a clamp to the fuel rail to secure the service nipple, and if necessary, replacing the fuel rail.
Material
Description Quantity Part No.
Kit 1 30684385
Loctite 0.1 1161075 or 1161053
Injector and delivery pipe Check fuel rail and install clamp
Checking installation of the service nipple 1
Check the mounting of the service nipple on the fuel rail. Visually check the mounting of the end cover.
The end cover must be in line with the end of the fuel rail as illustrated.
If the end cover is in line with the fuel pipe; Continue with step 2.
If end cover is not in line with the fuel rail, replace the fuel rail. See VADIS:
Section 23
Fuel system
Components replacing, Injectors replacing.
Transfer all parts required.
Install the additional clamp 2

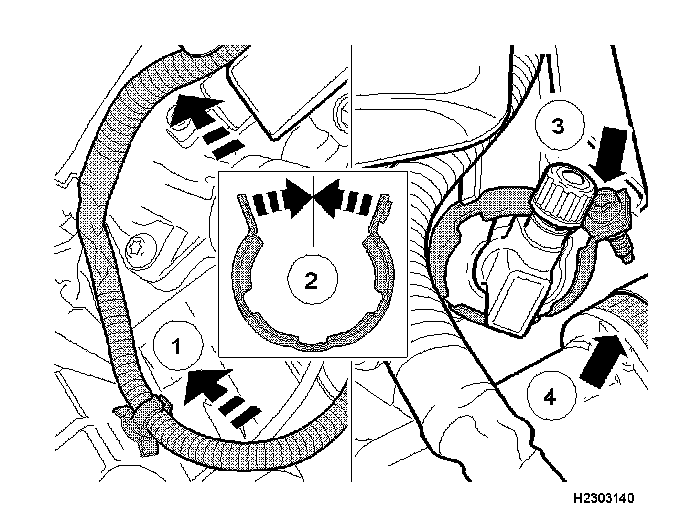

Slide the cable harness through the clip (1) to the rear for better access.
Press the new clamp together. Position the lips of the clamp together by bending (2).
Place the clamp (3), with the broad side, towards the service nipple, over the connection. See illustration.
Position the clamp (note the opening for the extra rib) as illustrated.
Apply thread locking compound (Loctite) on the screw before fitting. Install the torx screw (T25) . Tighten to 3 Nm.
Caution!
Ensure that the screw does not come in contact with the radiator hose or hose clamp (4).
Reposition the cable harness.
Caution!
In case of reassembling it is not allowed to reuse the screw or the clamp.
