Removal and Replacement

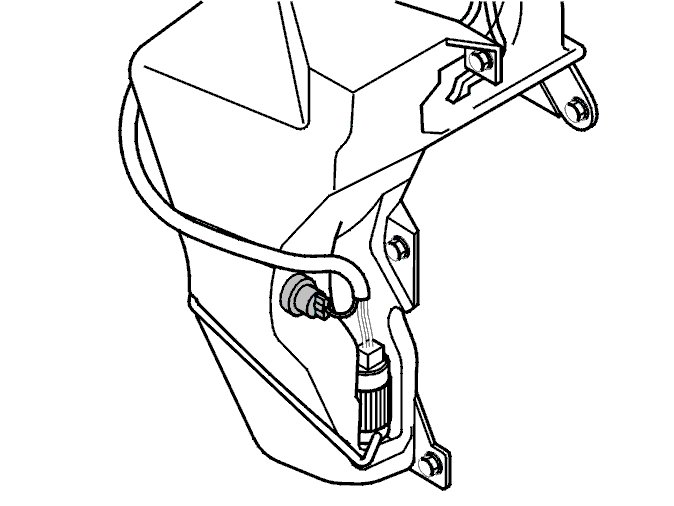

Replacing the washer level sensor

Removal




Ignition off.
Remove the air baffle.




Disconnect the connector.
Remove the sensor by pulling it straight out.

Note! When removing the sensor, the windshield washer fluid runs out.

Installation
Install in reverse order.
Ignition on.
