Power Steering Delivery Pipe

Power steering delivery pipe

Operation number: 64532-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Drain the power steering fluid from its reservoir. Refer to: Service and Repair





Warning! Be prepared to collect escaping fluids.

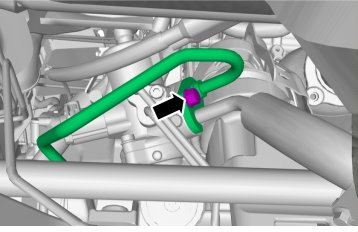

Delivery pipe to power steering pump. Tighten. Refer to Specifications [1][2]Specifications.








Warning! Be prepared to collect escaping fluids.

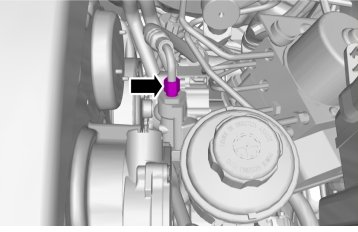

Delivery line to steering gear. Tighten. Refer to Specifications [1][2]Specifications.

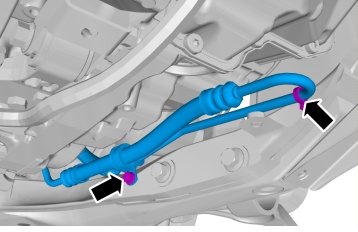

M6. Tighten. Refer to Specifications [1][2]Specifications.

Installation

To install, reverse the removal procedure

Fill and bleed the power steering system. Refer to: Power steering system, bleeding Service and Repair.
