Alternator Pulley / Clutch: Service and Repair

Generator pulley, generator

Operation number: 32171-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the generator (GEN). Refer to: Generator Service and Repair.

Note! The rotor shaft is left-hand threaded.




Applies to pulley with freewheel.

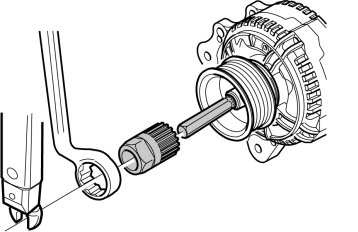

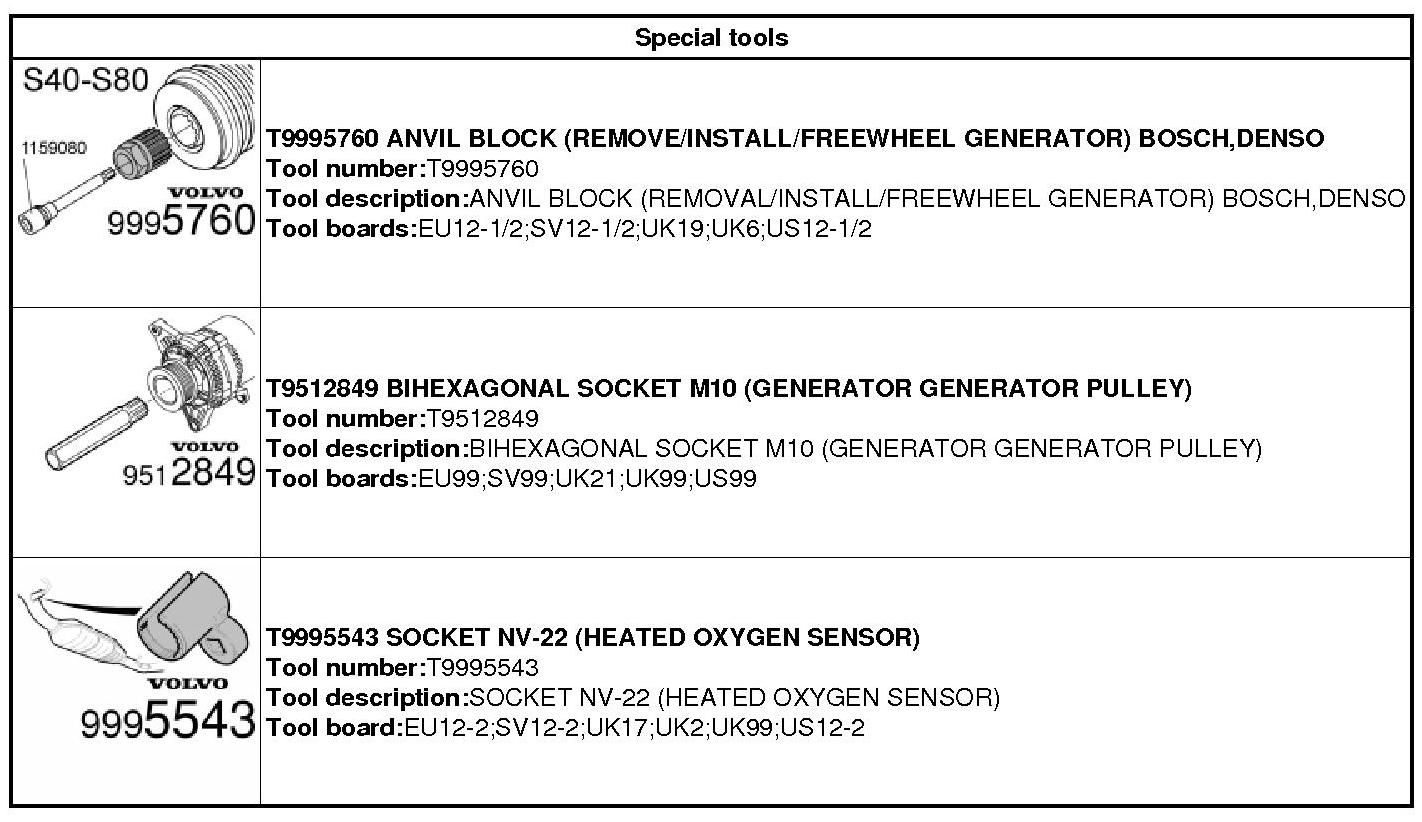

999 5760 Counterhold 999 5760 Counterhold and 951 2849 Twelve tooth spanner M10 951 2849 Twelve Tooth Spanner M10.
Tighten, M12. Refer to Specifications [1][2]Specifications




Applies to pulley without freewheel.

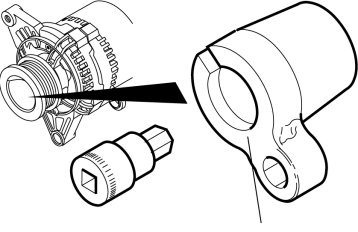

999 5543 SOCKET NV-22 HO2S 999 5543 Socket NV-22 HO2S.
Tighten, M12. Refer to Specifications [1][2]Specifications

Installation

To install, reverse the removal procedure
