TV Amplifier, Replacing

Operation number: 39620-2

Television (TV) Amplifier

Removal

Note! Removal steps in this procedure may contain installation details.





Remove right side panel cargo compartment Refer to: Side panel load space Side Panel Loadspace

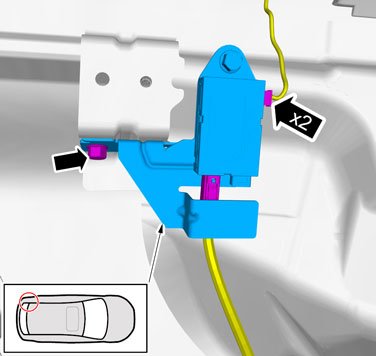

Torque: M6, 10 Nm








Torque: M6, 10 Nm

Remove right side panel d-pillar Refer to: Panel, D-pillar Panel, D-Post, Replacing




Torque: M6, 10 Nm





Remove left side side panel cargo space Refer to: Side panel load space Side Panel Loadspace

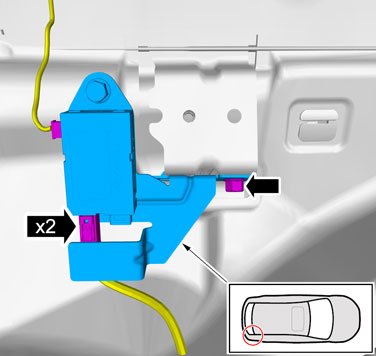

Torque: M6, 10 Nm








Torque: M6, 10 Nm

Remove left side panel d-pillar Refer to: Panel, D-pillar Panel, D-Post, Replacing




Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure.
