Differential Mount: Service and Repair

Operation number: 46554-2

Differential Support Insulator

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.





Remove the final drive.

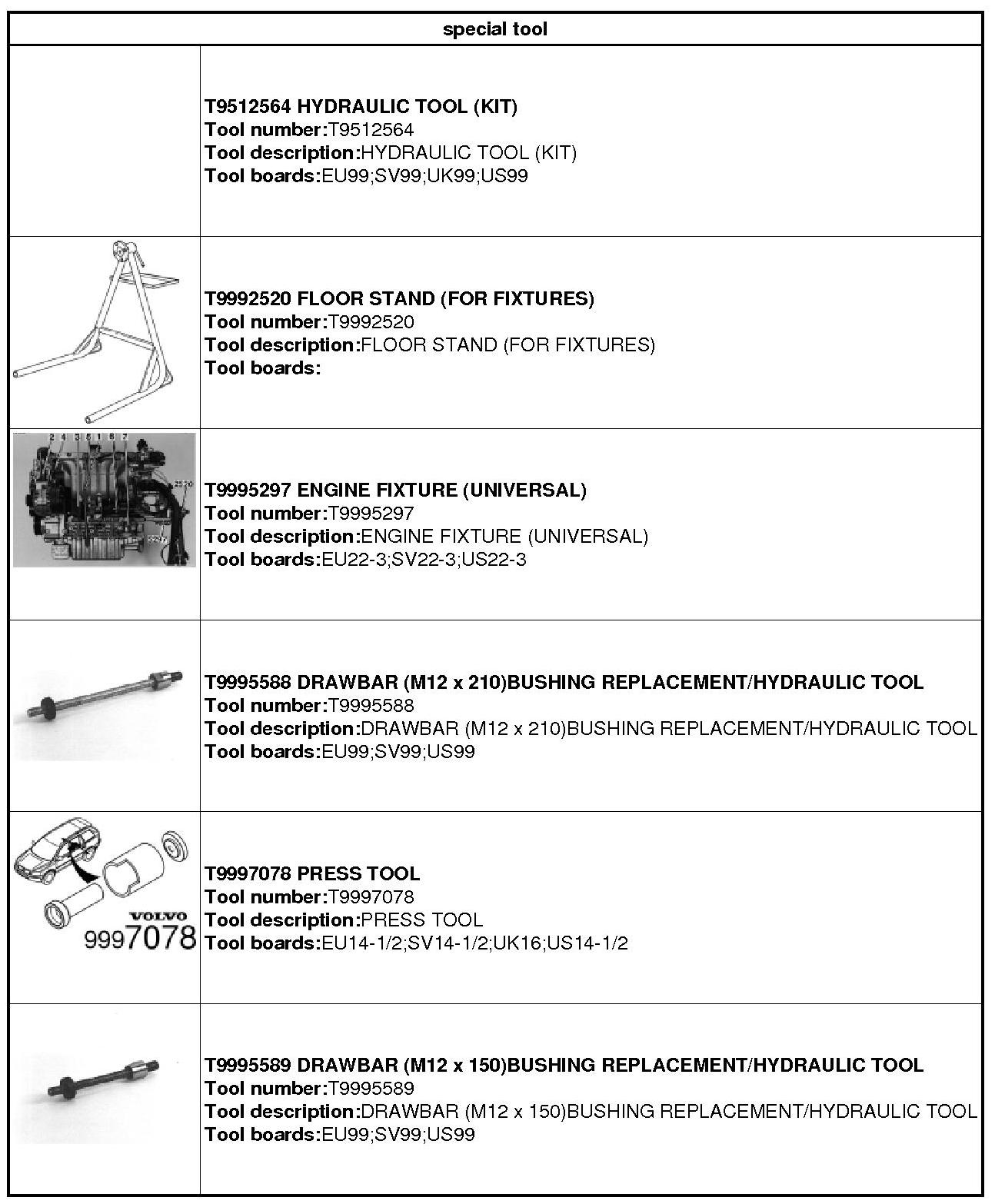

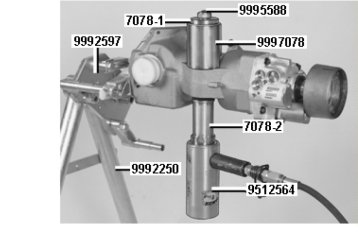

951 2564 Hydraulic tool 951 2564 Hydraulic Tool , 999 2520 FLOOR STAND 999 2520 Floor Stand , 999 5297 ENGINE FIXTURE 999 5297 Engine Fixture , 999 5588 Puller rod 999 5588 Puller Rod , 999 7078 Press tool 999 7078 Press Tool.

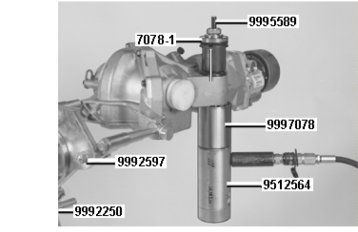

951 2564 Hydraulic tool 951 2564 Hydraulic Tool , 999 2520 FLOOR STAND 999 2520 Floor Stand , 999 5297 ENGINE FIXTURE 999 5297 Engine Fixture , 999 5589 Puller rod bushing replacement M12 L=150 mm 999 5589 Puller Rod Bushing Replacement M12 L=150 mm , 999 7078 Press tool 999 7078 Press Tool.

Installation

To install, reverse the removal procedure
