Power Steering Delivery Pipe

Operation number: 64532-2

Power steering delivery pipe






Removal

Remove battery Refer to: Battery Battery




Torque: M8, 24 Nm

Remove the air filter housing Refer to: Air cleaner housing, B6324S5, B6324S4 , B6304T4 Service and Repair




1. Torque: M6, 10 Nm

2. Torque: Pressure line to power steering pump, 30 Nm

Remove the wheel Refer to: Wheels Service and Repair









Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed.

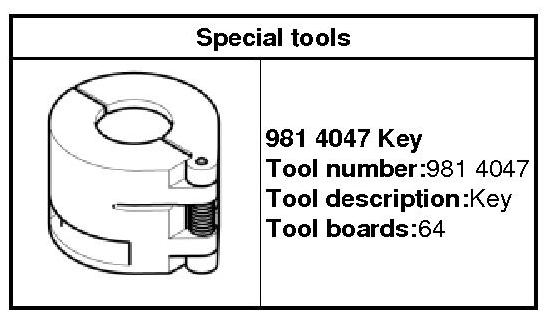

981 4047 Wrench 981 4047 Wrench




Torque: M6, 10 Nm

Installation





Perform power steering system, bleeding air
