Brake Discs Front

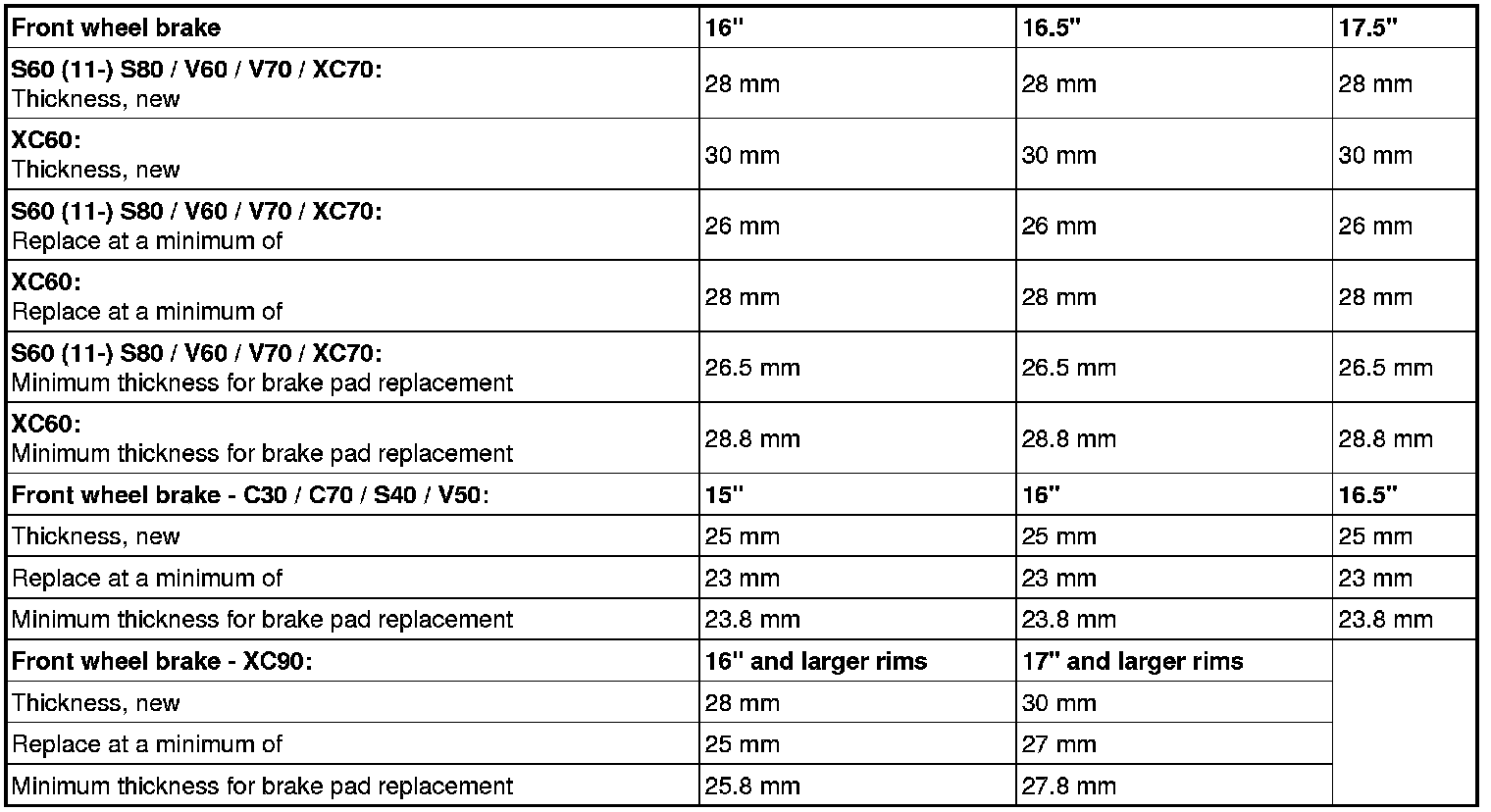

Brake discs front










Brake Disc Maximum On-Vehicle Lateral Runout
Front 0.040 mm
