Window Frame and Regulator
Window Frame and Regulator

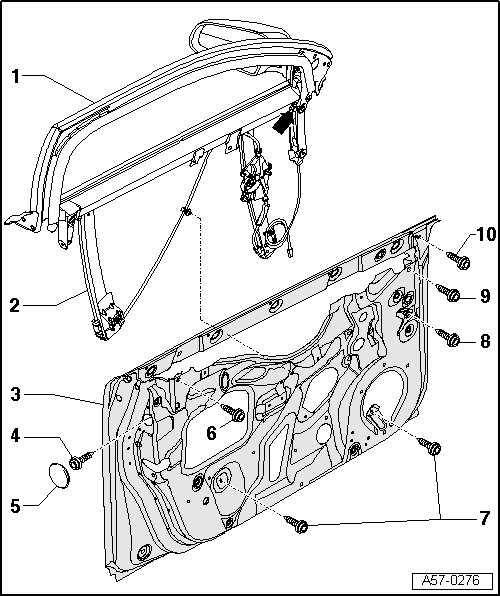

1 - Window frame
• Removing:
• Remove door trim.
• Disconnect electrical harness connectors.
• Remove window regulator motor => [ Window regulator motor, removing and installing ].
• Remove bolts - 7 -.
• Remove bolts - 4 -, - 8 - and - 10 -.
• Remove bolts - 6 - and - 9 - and lift window frame with window regulator upward and out of door.
• Installation:
• Drive window into window frame half way before installing.
• Insert window frame and window regulator into door from above.
• Knock in the upper profile halves of door-side gasket into window frame at top.
• Loosely screw in mounting bolts in the sequence - 6 -; - 9 -;- 3 -; - 8 - and - 10 -.
• Tighten collared shoulder bolts - 6 - and - 9 - hand tight.
• Lightly press window frame - 1 - inward at top.
• Tighten bolts - 4 - and - 8 - to 32 Nm.
• Tighten collared shoulder bolts - 6 - and - 9 - to 32 Nm.
• Tighten bolt - 10 - to 10 Nm.
• Tighten locating bolt - arrows - in window frame to 32 Nm.
2 - Window regulator
• Bolted to window frame for installing in door.
3 - Front door
4 - Torx screw
• 32 Nm
5 - Concealment cap
6 - Collared shoulder bolt
• 32 Nm
7 - Collar bolt
• 6 Nm
8 - Torx screw
• 10 Nm
9 - Collared shoulder bolt
• 32 Nm

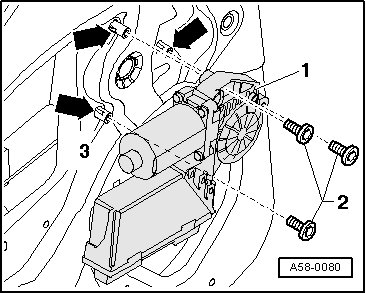

Window regulator motor, removing and installing
- To remove, unscrew bolts - 2 - and remove window regulator motor.
- Install window regulator motor => [ Window Regulator Motor ] Service and Repair.

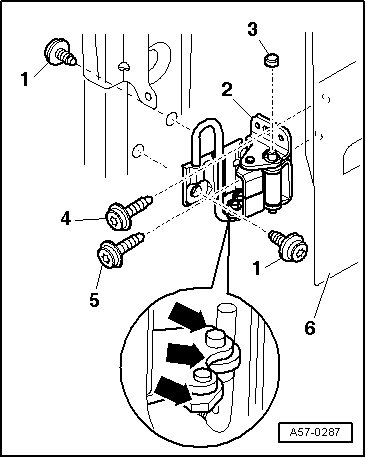

Upper door hinge
- Torx bolt (T45) - 1 - ( installed from inside of vehicle ) 32 Nm.
- Top door hinge - 2 -.
- Cover cap - 3 -.
- Torx bolt (T45) - 4 - 32 Nm.
- Install bolt - 5 - (T45) 32 Nm.

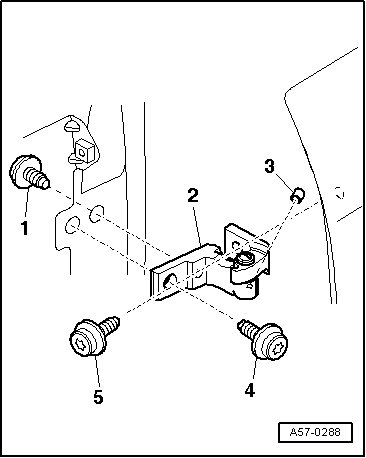

Lower door hinge
- Torx bolt (T45) - 1 - 32 Nm bolted to B-pillar from interior of vehicle.
- Lower door hinge - 2 -.
- Cover cap - 3 -.
- Torx bolt (T45) - 4 - 32 Nm.
- Collared shoulder bolt (T45) - 5 - 32 Nm.
- Re-grease lubrication points - arrows - in service interval.
- Front door - 6 -.
