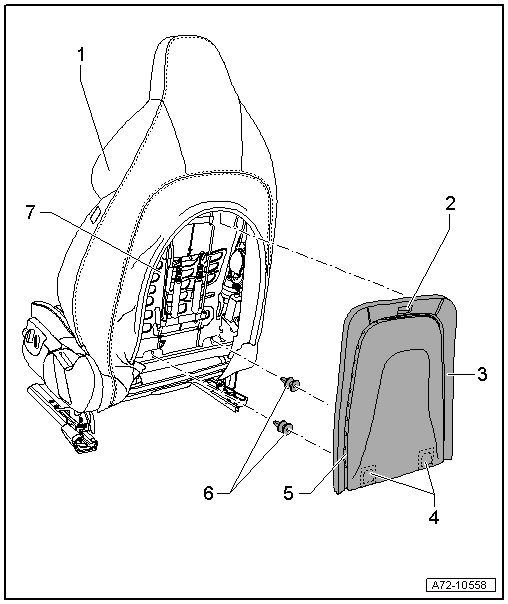

Backrest Cover Assembly Overview

Backrest Cover Assembly Overview





1 Front Seat

2 Tab

• Formed to backrest cover

3 Backrest Cover

• Removing and installing, refer to => [ Backrest Cover ] Power Front Memory Seats

4 Bracket

• Quantity: 2

• Formed to backrest cover

5 Groove

• For engaging backrest cover

6 Clip

• Quantity: 2

• Clipped into backrest cover

• Replace if damaged

7 Four-Way Lumbar Support

• Assembly overview, refer to => [ Four-Way Lumbar Support Assembly Overview ] Four-Way Lumbar Support Assembly Overview

• Removing and installing, refer to => [ Four-Way Lumbar Support ] Power Front Memory Seats
