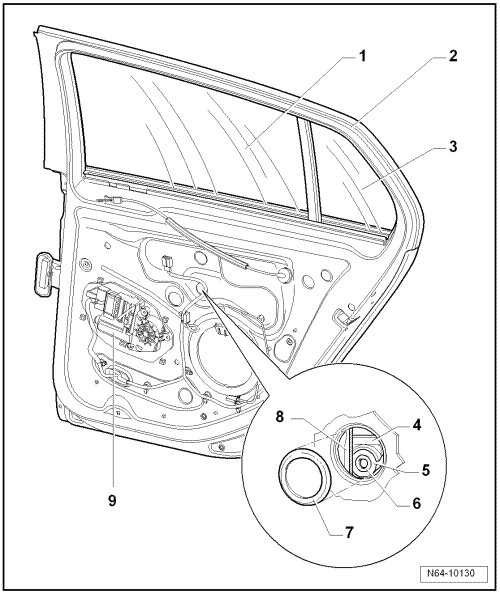

Rear Door Windows Assembly Overview

Rear Door Windows Assembly Overview

• The description applies to the right side. The left side is similar





1 Door window

• Removing and Installing => [ Rear Door Window ] Rear Door Window

2 Window guide

• Component of fixed door window.

• Removing and Installing => [ Fixed Rear Door Window with Window Guide ] Fixed Rear Door Window With Window Guide

3 Fixed door window

• Is component of window guide.

• Removing and Installing => [ Fixed Rear Door Window with Window Guide ] Fixed Rear Door Window With Window Guide

4 Window regulator guide

5 Spreader pin

• Always replace when performing assembly work at door window

6 Spreader plug

• Always replace when performing assembly work at door window

7 Cap

8 Window regulator

• Removing and Installing => [ Rear Door Window Regulator ] Rear Door Window Regulator

9 Window regulator motor

• Removing and Installing => [ Rear Door Window Regulator Motor ] Rear Door Window Regulator Motor
