2.5L, TDI

Battery Overview

Risk of injury. Observe the warnings and safety precautions. Refer to => [ Warnings and Safety Precautions ] Service Precautions!

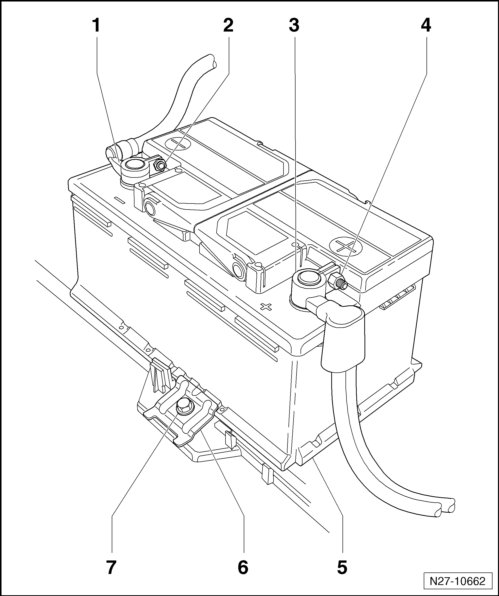

1 Battery Terminal Clamp Ground Wire

• For more information regarding the battery poles, refer to => [ Battery Post/Terminal ] Battery Post/Terminal.

2 M6 Nut

• 6 Nm

3 Battery Terminal Clamp Positive Wire

• For more information regarding the battery poles, refer to => [ Battery Post/Terminal ] Battery Post/Terminal.

4 M6 Nut

• 6 Nm

5 Battery (A)

• Battery disconnecting and connecting, refer to => [ Battery, Disconnecting and Connecting ] Service and Repair.

• Removing and installing, refer to => [ Battery ] Battery.

• Battery tray, removing and installing, refer to => [ Battery Tray ] Battery Tray.

6 Clamping Plate

7 M8 Bolt

• 20 Nm
